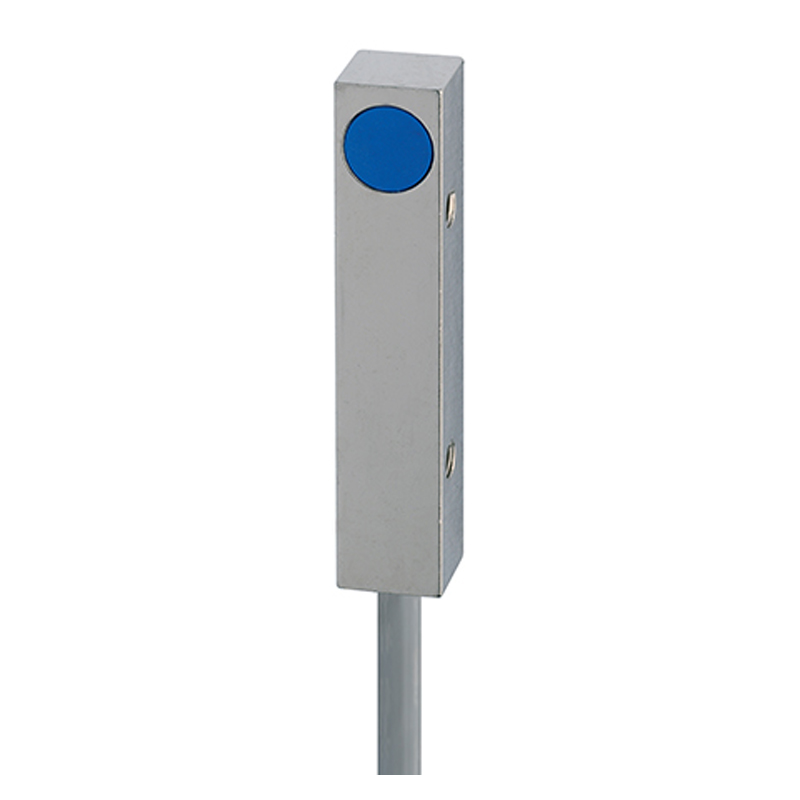

DW-AD-503-C8

Inductive sensor

lei494.01
Tax excluded
Quantity
Last items in stock

  Security policy

Your data is safe during the ordering process and we will only use it for this purpose

  Fast delivery

Products are delivered quickly, even those by special order.

  Return policy

If you are not completely satisfied, we are here to help

Description
Operating distance Sn 3 mm
Housing size [mm] 8 x 8 (C8)
Mounting Quasi-embeddable
Polarity PNP
Output Normally open (NO)
Interface IO-Link
Connection PVC, 2 m, 3 wire
Supply voltage 10...30 VDC
Switching frequency max. [Hz] 1000
Housing material Chrome-plated brass
Enclosure rating (IP) IP 67
Operating pressure [bar] ≤ 1 bar

Product Details
1 Item

Data sheet

Link producator
Attachments
Download
Fisa tehnica

Download (89.87KB)
