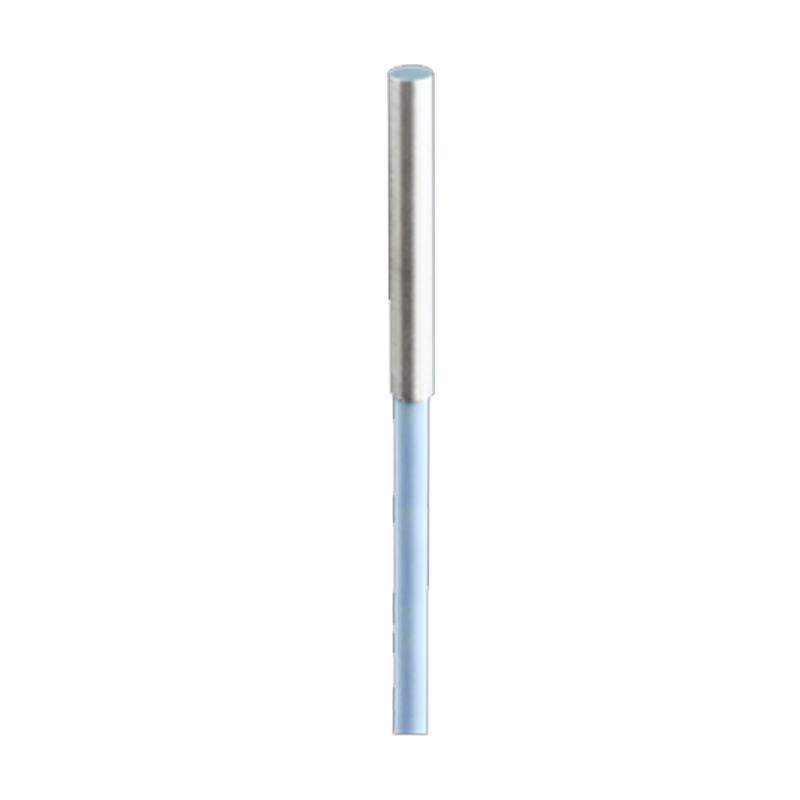

IFRM 03P1501/L (10134726) - Inductive proximity switch

IFRM 03P1501/L (10134726)

IFRM 03P1501/L (10134726)

IFRM 03P1501/L (10134726)

  • Nominal sensing distance Sn 0,8 mm
  • Output circuit PNP make function (NO)
  • Connection types cable, 2 m
  • Operating temperature -25 … 75 °C
  • Protection class IP 67
  • Hysteresis 2 … 20 % of Sr
  • Output indicator LED red
  • Switching frequency 3 kHz
  • Voltage supply range +Vs 6 … 30 VDC
  • Current consumption max. (no load) 12 mA
  • Output current 100 mA
  • Short circuit protection Yes

lei544.00
Tax excluded
Quantity
Last items in stock

  Security policy

Your data is safe during the ordering process and we will only use it for this purpose

  Fast delivery

Products are delivered quickly, even those by special order.

  Return policy

If you are not completely satisfied, we are here to help

Description
Product Details
IFRM 03P1501/L (10134726)
1 Item

Data sheet

Link producator
Attachments
Download
Fisa tehnica

Download (64.67KB)
